Electroplating Waste Gas Treatment: Capture at the Tank, Chemistry at the Tower

Key Takeaways

• An electroplating shop does not produce one waste gas. It produces four or five chemically incompatible streams — hydrochloric acid mist, chromic acid mist, sulphuric acid mist, hydrogen cyanide and, where nitric acid is used, nitrogen oxides. Each needs different scrubbing chemistry.
• Segregation comes before sizing. Cyanide-bearing exhaust must never share a duct with acid exhaust: acid contacting cyanide releases hydrogen cyanide gas, which is lethal at 50 ppm. This is the single most dangerous failure mode in plating ventilation and it is entirely preventable at the drawing stage.
• Most plating exhaust problems are capture problems. The exhaust volume is set by the tank surface area and the capture velocity you need at the tank lip, not by the stack. A scrubber cannot clean air that never reached its inlet.
• Chrome mist is not a gas. Hexavalent chromium travels as a submicron aerosol, and capturing it requires high-efficiency mist elimination downstream of the packing — not just more packing.
• Nitric acid is the exception nobody designs for. Nitric oxide is barely soluble in caustic, so a single alkaline stage will not hold a NOx limit. It needs an oxidising or reducing step first.
• Blowdown is part of the design, not an afterthought. Chromium must be reduced to Cr(III) before precipitation, and cyanide must be oxidised before discharge.

What Electroplating Waste Gas Treatment Has to Handle

Why one plating shop produces four incompatible exhaust streams

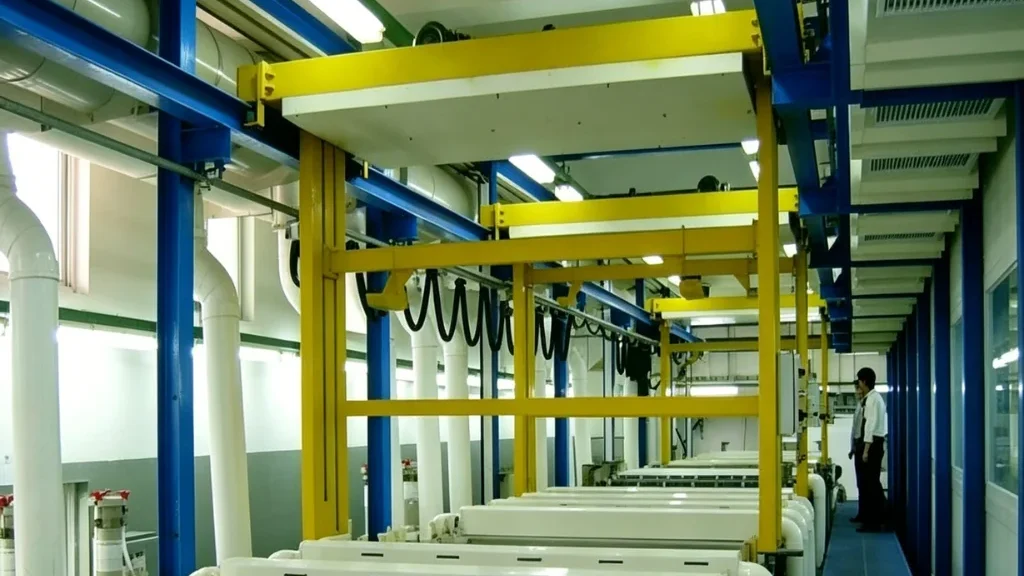

Walk the tank line of a job plating shop and you pass pickling baths of hydrochloric acid, chrome plating baths of chromic acid with a sulphuric acid catalyst, anodising and nickel baths of dilute sulphuric acid, and possibly cyanide zinc or copper baths. Each tank evolves a different mist, each mist has a different health hazard, and — the point that governs the whole design — each requires a different scrubbing chemistry and a different pH.

This is the structural difference between plating exhaust and almost every other exhaust problem in this industry. A paint shop or a plastics line produces one pollutant family, so the question is how big the treatment system needs to be. A plating shop produces several families that cannot be treated together, so the first question is not sizing at all — it is which streams may share a duct and which must not. The answer to that question determines the number of scrubbers, the number of fans, the duct layout and the wastewater plant, and it is fixed before a single piece of equipment is quoted.

The tank is the source: mist generation and surface area

Plating emissions come off liquid surfaces, and the mechanisms are worth separating because they respond to different controls.

Gas evolution. Plating and anodising are electrolytic processes. Hydrogen is generated at the cathode, oxygen at the anode, and the bubbles rise through the bath and burst at the surface, ejecting droplets of the bath solution into the air above. This is the dominant mechanism in chrome plating and in anodising, and it is why the mist is a liquid aerosol rather than a vapour. A chromic acid mist droplet carries the full chemistry of the bath, hexavalent chromium included.

Evaporation and drag-out. Heated pickling baths evaporate acid, and parts withdrawn from a bath carry a film of solution that releases vapour into the air above the tank. Hot concentrated baths and high throughput both increase it.

Entrainment from agitation and spraying. Air agitation, barrel rotation and spray rinsing all throw droplets into the air. So does the exhaust itself if it is drawn too fast across an open tank surface.

The practical consequence is that the emission rate scales with the tank surface area and with the energy being put into the bath, and it rises sharply with temperature. Every capture design starts from the tank schedule: which tanks, what surface area, what temperature, what chemistry, and how many hours a day.

What this page covers

This page is about the plant: how to capture plating exhaust at the tank, how to route it, how the treatment train is organised into zones, how to size it, and how to keep it compliant. It covers the scrubbing chemistry in enough detail to design and to specify, and where a topic deserves a deeper treatment — the per-acid scrubbing chemistry, packing selection and material comparison — that is covered in our companion material on acid scrubber systems.

The Four Streams and Their Chemistry

Hydrochloric acid mist from pickling

Pickling is the most common surface-preparation step: steel, zinc and copper parts are dipped in hydrochloric acid solutions to remove oxide scale before plating. The heated bath generates a mist of fine droplets, typically in the one-to-ten micron range, and the exhaust therefore needs both gas-phase absorption and physical mist removal.

Hydrochloric acid is the easiest of the plating acids to scrub. It is highly soluble, it dissolves completely in water, and it reacts rapidly with caustic at a near-neutral pH. A packed bed with around two metres of polypropylene packing reaches 95–99% removal at gas velocities in the range of 1.5–2.5 m/s. The difficulty in a pickling line is not the chemistry but the volume: large open tanks with high surface area generate a substantial airflow, commonly in the region of 500–2,000 CFM per tank, and the airflow is set by capture rather than by pollutant load.

The material point is worth stating early because it recurs throughout a plating shop. Stainless steel — including grades that look adequate on a corrosion chart — fails in hydrochloric acid service by chloride-induced pitting, with pinhole leaks appearing in the shell within roughly eighteen months to two years. Polypropylene is chemically inert to hydrochloric acid at plating concentrations and temperatures, and it is the material we build these scrubbers from.

Chromic acid mist from decorative and hard chrome plating

Chrome plating exhaust is the most hazardous stream in the building and the one that most often determines the design. The bath is chromic acid, and the mist carried out of it contains hexavalent chromium, Cr(VI) — a confirmed human carcinogen.

Two properties make it difficult. First, Cr(VI) travels as a submicron aerosol, with droplets commonly in the 0.1–5 micron range. A packed bed that captures a soluble gas efficiently will still pass a meaningful fraction of droplets in the smallest size band, because the collection mechanisms that work on gases do not work the same way on fine particles. Effective chrome mist control therefore requires high-efficiency mist elimination — chevron-type or mesh pad eliminators rated for better than 99% capture of droplets above one micron — positioned downstream of the packing, and maintained. Second, Cr(VI) has to be chemically reduced to Cr(III), the far less toxic trivalent form, which requires sufficient contact time with a reducing agent in the scrubbing liquor, not merely absorption into an alkaline solution.

The regulatory pressure behind this is real and tightening. Occupational exposure limits for hexavalent chromium are among the lowest for any industrial chemical — the United States permissible exposure limit is 5 µg/m³ as an eight-hour average, and under European chemicals regulation Cr(VI) compounds are classified as substances of very high concern. Emission limits in China, Europe, the United States and across Asia all push toward high-efficiency scrubbing with demonstrated performance. Because the limit is so low, chrome mist control is one of the few air-pollution duties where the maintenance regime decides compliance: an eliminator that is fouled with chromium salts will pass droplets, and the stack test will show it.

Sulphuric acid mist from anodising and nickel plating

Anodising baths use dilute sulphuric acid at ambient temperature, with hard anodising running substantially hotter. Nickel plating baths use sulphuric acid as the electrolyte. In both, hydrogen evolved at the cathode carries acid mist out of the bath into the exhaust hood.

The scrubbing chemistry is straightforward — caustic at near-neutral pH neutralises the acid, and the reaction produces sodium sulphate, which stays in solution and leaves via blowdown. The design issues are thermal and physical rather than chemical. Where the exhaust gas is hot — and it can be, above roughly 40 °C on hard anodising and on any bath with a large heat load — a pre-quench spray section upstream of the packed bed protects the polypropylene internals from softening. And like chrome mist, sulphuric acid mist from anodising is an aerosol rather than a true vapour, so mist elimination matters here too.

Hydrogen cyanide from cyanide plating

Cyanide zinc, cyanide copper and cadmium baths release hydrogen cyanide — colourless, with a bitter-almond odour that a substantial fraction of people cannot detect at all, and lethal at high concentration.

Scrubbing hydrogen cyanide requires alkaline conditions, at a pH above 10, where the gas is absorbed and held as cyanide in solution. Note how far that is from the pH the acid stages run at: this is the clearest single illustration of why a plating shop cannot be served by one scrubber. And note the second implication, which is a wastewater one: absorbing hydrogen cyanide into caustic converts an air problem into a liquid one, because the resulting cyanide-bearing blowdown is itself hazardous and must be oxidised before discharge.

Nitric acid, mixed acid and the NOx complication

Nitric acid appears in passivation, in bright dipping and in mixed acid pickling formulations, and it behaves differently from every other acid in the shop. Where hydrochloric acid releases HCl vapour that caustic absorbs readily, nitric acid on metal releases nitrogen oxides — predominantly NO, with some NO₂ — and nitric oxide is only sparingly soluble in water and in alkaline solution. A single stage of caustic scrubbing will therefore remove far less of a NOx load than its HCl performance would suggest, and the exhaust leaves the stack with a yellow-brown tint that is unmistakable and unmistakably a compliance problem.

Two approaches work, and both add a stage. The first is oxidising scrubbing: an oxidant — hydrogen peroxide, or hypochlorite — is introduced to convert NO to the much more soluble NO₂, which the alkaline stage behind it then absorbs effectively. The second is reducing scrubbing, in which a reducing agent converts the oxides to nitrogen. Which is appropriate depends on the NO-to-NO₂ ratio in your exhaust, which in turn depends on the bath chemistry and on how much air has already mixed with the gas. Measure the ratio before specifying, because a supplier who quotes a NOx removal efficiency without knowing it has guessed.

The Safety Rule That Comes Before Any Design

Cyanide plus acid equals hydrogen cyanide

If acid mist enters a duct carrying cyanide-bearing exhaust — through a shared manifold, a mis-set damper, a failed check valve or a cross-connection nobody noticed — the acid reacts with the cyanide to release hydrogen cyanide gas. The reaction is fast, the product is lethal, and the failure is silent until it is not.

The exposure figures make the margin clear. Hydrogen cyanide is detectable by smell at around 5 ppm by those who can smell it at all, the occupational exposure limit is in the region of 10 ppm as an eight-hour average, and 50 ppm is immediately dangerous to life or health. That window is narrow, and it closes entirely for the substantial proportion of the population with no ability to detect the odour. This is the mechanism behind some of the most serious ventilation incidents in the plating industry, and every one of them was preventable at the drawing stage.

Chromium(VI) plus organics

Chromic acid is a strong oxidiser. If chrome-bearing exhaust is mixed with organic vapours — from a degreasing tank, a solvent wipe station or a paint operation in the same building — the mixture is a fire and reaction hazard in the ductwork, separate from the toxicity question. Chrome exhaust should be routed alone, and where a shop also has a solvent degreasing operation, its exhaust is a separate problem requiring its own treatment, usually adsorption rather than scrubbing.

What segregation means in ductwork and controls

Segregation is a ductwork and controls discipline, not a note on a drawing. In practice it means:

• Independent duct runs from the cyanide tanks to their own scrubber, with no shared header at any point.
• A dedicated fan for the cyanide zone, so that a fan failure or a damper movement elsewhere cannot redirect air between zones.
• Non-return dampers and physical separation where duct runs pass close to each other, so that a pressure reversal cannot push acid vapour into the cyanide duct.
• Distinct identification — labelled, colour-coded, and recorded on the as-built drawing that the maintenance team actually uses.
• Interlocks so that the cyanide extraction cannot be shut down while the baths are active, and so that the two systems cannot be cross-connected during a maintenance isolation.

These measures cost little at construction and are close to impossible to retrofit into a working plating shop, because retrofitting them means re-running ductwork through a building that is in production.

Capture at the Tank

Tank surface area sets the exhaust volume

The exhaust volume for a plating line is not a free parameter. It follows from the tank surface area, the temperature of the bath, the chemistry, and the control velocity required at the tank lip — the air speed needed to keep the evolved mist inside the hood rather than letting it escape into the shop breathing zone.

Two consequences follow, and both are commercially important. First, because the volume scales with open tank area, covering or partially enclosing a tank reduces the exhaust volume and therefore the scrubber size, the fan power and the chemical consumption, permanently. Second, because the control velocity requirement rises with cross-draughts in the shop — a plating line in a bay with a large door or a busy forklift route needs a higher capture velocity than the same line in a still room — the building affects the equipment cost. A supplier who quotes a scrubber without asking about tank dimensions, bath temperature and the draught conditions around the line has skipped the step that determines the price.

Push-pull lateral exhaust versus enclosure

For open tanks, the standard solution is lateral exhaust: a slotted hood along one long side of the tank drawing air across the surface, often with a push jet on the opposite side to reinforce the flow across wide tanks. Push-pull arrangements are considerably more effective than pull alone on tanks wider than about 600 mm, because the induced flow keeps the capture velocity up across the far side of the surface where a pull-only hood has lost most of its influence.

Where the process allows it, an enclosure — a fume hood, a slot enclosure, a partial canopy — beats lateral exhaust on every measure: lower exhaust volume for the same capture, less sensitivity to shop draughts, and better operator protection. The reason it is not always used is process access: parts must be loaded and unloaded, and a hood that obstructs the operator will be defeated in practice, whether by being propped open or by being removed. Design the access and the capture together, and involve the people who run the line.

Slot velocity, capture velocity and the working zone

Two velocities matter and they are often confused. Capture velocity is the air speed needed at the point where the mist is released — the tank surface — to draw it into the hood before the shop air carries it away. Slot velocity is the speed of the air entering the hood slot itself, which must be high enough to distribute the flow evenly along the slot length rather than letting all of it enter at the end nearest the fan.

Both need to be specified, and the slot has to be designed to deliver a uniform flow along its whole length. A slot that is not uniformly loaded will capture at one end of the tank and release at the other — and the released fraction is the fraction that generates the operator complaint and the shop-air exceedance, regardless of how well the scrubber performs.

Why capture is always cheaper than scrubbing capacity

There is a consistent pattern in plating exhaust projects: the complaint is about the scrubber, and the cause is the hood. Improving capture at the tank — a better slot, a push jet, a partial cover, a splash guard, an air curtain at the loading face — reduces the volume that the scrubber must handle and, crucially, increases the fraction of the generated mist that actually reaches it. Both effects reduce cost.

The reverse is also true and is the more expensive mistake: adding scrubber capacity to compensate for poor capture increases fan power, chemical consumption, blowdown volume and the size of the wastewater plant, and it does not address the fraction of mist that never entered the duct. When a plating shop’s shop-air readings exceed the limit while the stack readings comply, the problem is capture, and no amount of scrubbing capacity will fix it.

Ductwork, Materials and Fans

The duct is part of the chemistry problem

In most exhaust systems the duct is a passive element. In a plating shop it is not. The duct carries a warm, wet, highly corrosive aerosol, and its material has to survive the specific acid in that particular run — which is a different requirement in each zone. It also has to be liquid-tight, because plating exhaust condenses, and condensate that leaks from a duct is a corrosion and exposure problem at whatever it drips onto.

The layout matters too. Horizontal runs should be short and should drain, because droplets settle and pools of acidic condensate accelerate corrosion at the low point. Low points need drains. Bends should be gentle, and their number should be minimised — not only for pressure drop, but because each bend is a place where droplets impinge and where the duct wears.

Polypropylene, PVC, FRP and coated stainless

Material selection in a plating shop is genuinely difficult, because no single material is best against all four streams and the wrong choice fails within a couple of years. The comparison that matters:

• Polypropylene (PP) is chemically inert to hydrochloric acid at plating concentrations and temperatures up to around 80 °C, resists sulphuric acid, and does not react with cyanide solutions. It resists the oxidising environment of chromic acid at scrubber temperatures. It is the material that covers all four plating streams, and it is weldable — a PP vessel is fabricated from identical stock with homogeneous welded seams, which is a real advantage over materials joined by other means in a corrosive service.
• PVC works for moderate acid concentrations at lower temperatures, but its temperature ceiling is well below polypropylene’s, which rules it out for hot anodising or pre-quench service.
• FRP with vinyl ester resin gives broad chemical resistance and is the right answer in mixed-acid environments elsewhere in industry, but the strongly oxidising environment of chromic acid mist attacks the resin, which makes it a poor choice for a chrome zone.
• Stainless steel is the trap. Grades that appear adequate on a general corrosion chart fail by chloride pitting in hydrochloric acid service within roughly eighteen months to two years, and grades that resist chloride are attacked by chromic acid. Coated stainless can give very long life but at a substantial cost multiple, and the coating becomes the critical item — a coating defect is a corrosion initiation site.

The same logic applies to everything in contact with the gas or the liquor, not only the vessel shell: recirculation pumps, spray headers, nozzles, packing support grids and instrumentation all face the same attack, and all need to be specified in the same material family.

Pressure drop, elbows and the integration trap

Plating exhaust systems fail on pressure drop more often than on chemistry, and the reason is usually that the components were bought separately. A scrubber selected on its own performance curve is sized against an assumed inlet condition. The ductwork is fabricated to a material cost. The fan is quoted against a theoretical system resistance. What actually gets installed includes fittings that were not in anybody’s calculation, and the result is a system that moves less air than designed — typically discovered when the shop-air readings do not improve.

Because the design flow is what sets the capture at the tank, a shortfall in airflow shows up first as escape at the tank, not as reduced removal efficiency at the stack. That makes it easy to misdiagnose: the scrubber looks like it is underperforming when the real problem is that the hood is no longer capturing. Minimise fittings, calculate the pressure drop on the installed layout rather than the idealised one, and size the fan against the real total, with margin for packing fouling over the service interval.

Fans and blowers for corrosive service

The fan sits downstream of the scrubbing stages in most plating installations, so it handles saturated, cooled, corrosive gas and has to be built for it: an FRP or polypropylene casing with a corrosion-resistant impeller, a shaft seal that tolerates condensate, and a drain at the low point. Where the fan is placed upstream of the scrubber instead, it handles the hot raw gas and its material and temperature rating change accordingly.

Whichever arrangement is used, the fan is the component whose performance determines capture, so it is the last place to economise. A fan selected at its curve’s end point has no margin for a fouled packing or a filter that needs changing, and the loss of flow appears at the tank rather than at the fan.

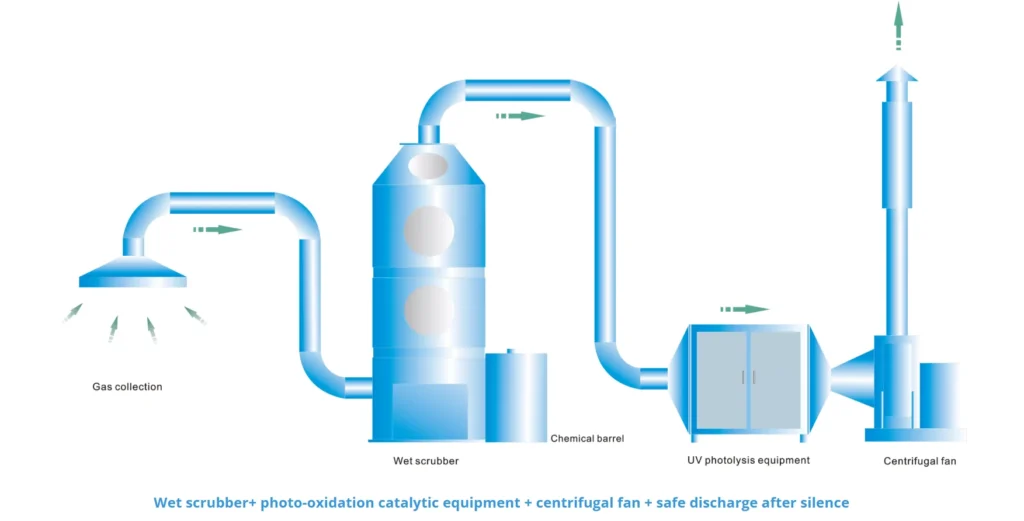

The Scrubbing Train, Zone by Zone

Zone one: acid scrubbing for hydrochloric and sulphuric mist

Carbon steel pickling and general acid tanks exhaust to a packed bed scrubber irrigated with caustic at a controlled near-neutral pH. Hydrochloric acid and sulphuric acid mist are absorbed and neutralised, producing chloride and sulphate in the recirculating liquor, which are removed by blowdown. The stage requires continuous pH control — caustic dosing on a pH set point with a probe in the sump — and a demister at the outlet to stop droplets carrying over into whatever follows. Our acid gas scrubber range covers this duty.

Zone two: chrome mist, reduction and high-efficiency elimination

Chrome exhaust is treated separately, and the stage has two jobs rather than one: absorb the acid, and reduce hexavalent chromium to the trivalent form. Reduction requires a reducing agent in the liquor and enough contact time for the reaction to complete, which means the stage is designed on reaction time, not only on absorption. The pH is held in the alkaline range, at the upper end of what the other acid stages use.

Downstream, the mist eliminator does the work that decides compliance. Chromium travels as a submicron aerosol, so a high-efficiency eliminator — chevron or mesh pad, rated for better than 99% capture above one micron — is the component that actually removes the droplets the packing passed. It is also the component most affected by maintenance: chromium salts accumulate on the eliminator, and a fouled eliminator re-entrains what it captured. Plan for inspection and cleaning access from the outset; a chrome scrubber whose eliminator cannot be reached is a scrubber that will fail its next stack test.

Zone three: alkaline scrubbing for hydrogen cyanide

Cyanide exhaust runs through its own scrubber, irrigated with caustic held above pH 10. The absorbed hydrogen cyanide is held in solution as cyanide, which creates the blowdown obligation described below. Because the pH set point is so far from the acid zones, this stage cannot share a liquor circuit with them under any circumstances, and because the consequence of a cross-connection is lethal rather than merely non-compliant, the separation should be physical and verifiable rather than relying on control logic alone.

Zone four: nitric acid and the NOx problem

Where nitric acid or mixed acid is used, the train gains a stage: an oxidising or reducing step ahead of the alkaline absorber, sized on the measured NO-to-NO₂ ratio. This zone is often omitted from an initial design because the nitric process is a small part of the shop, and it is then discovered at the first stack test when the exhaust shows the characteristic colour. Identify every nitric-bearing tank in the survey, even the ones that run occasionally.

Demisters, and why the last metre decides the stack test

Every scrubbing stage in a plating shop needs mist elimination at its outlet, for two reasons that compound. The first is compliance: the pollutants here travel partly as droplets, and droplets that escape the tower carry the full concentration of the liquor. The second is that carry-over contaminates the chemistry of the stage behind it — droplets of alkaline liquor entering an acid stage neutralise it, and vice versa, which means a carry-over problem presents as an unexplained loss of efficiency in a stage that is itself in good order.

This is why demister performance, and demister maintenance, deserve the same attention as packing. A chevron eliminator that has lost its drainage path, or a mesh pad that has matted, will pass droplets that the tower’s removal efficiency figure assumes were removed. The stack test then disagrees with the design calculation, and the cause is the component at the top of the tower rather than anything in the chemistry. Our wet scrubber systems and industrial wet scrubbers are built as multi-stage trains with elimination at each stage for this reason.

Sizing a Plating Scrubber

Air volume comes from the tanks, not the stack

The design flow is the sum of the capture volumes for every tank connected to the zone, calculated from tank surface area, bath temperature, chemistry and the required control velocity, plus the draught allowance for the shop conditions. It is usually considerably larger than the flow the pollutant mass alone would suggest, because plating exhaust is dilute by volume and the airflow is set by capture.

Because a plating line is rarely built all at once, get this number right for the final line configuration, not only the current one. A scrubber sized for today’s three tanks and asked to serve five next year will fail at the tanks, not at the stack, and the fix is a new tower rather than a bigger pump.

Packing depth, gas velocity and the efficiency curve

Two parameters define a packed absorption stage. The first is the gas velocity through the packing — most packed bed scrubbers for this duty operate in the range of roughly 1.5–2.5 m/s, which balances mass transfer against pressure drop and against the risk of flooding. The second is the packing depth, which sets the contact time and therefore the removal efficiency.

The relationship between depth and efficiency is not linear, and the non-linearity is what makes it a design decision rather than a formula. Moving from a moderate efficiency to a high one requires a disproportionate increase in packing depth — commonly described as roughly doubling the packing depth to move from around 95% to around 99% — and that increase carries the tower height, the fan pressure, the recirculation rate and the cost with it. The right question is what efficiency your standard actually requires, because designing to a round number higher than the limit means paying for tower height, fan power and chemicals for the life of the plant.

Liquid-to-gas ratio and spray coverage

The third parameter is the liquid-to-gas ratio — the volume of scrubbing liquor circulated per unit of gas flow, commonly expressed as a recirculation rate per unit of packing cross-sectional area. It determines how completely the packing is wetted and how much fresh reagent reaches the reaction sites.

Too low and the upper packing dries out and stops working; the instruments read normally and the efficiency quietly falls. Too high and the fan pays for moving liquid it does not need, and the demister is loaded with more droplets than it was designed for. Spray header design matters as much as the flow rate: headers that do not cover the full cross-section leave dry patches in the packing, and those patches behave as if they were not there at all.

Pressure drop in a fouling-prone service

Pressure drop across the packing is the operating parameter to watch, because plating exhaust fouls. Chromium salts, hardness scale from the water supply, and particulate carried from the tanks all deposit on packing surfaces, and the deposit reduces both the open area and the mass transfer area. Specify the packing and the fan with margin for that accumulation, and monitor pressure drop as a trend rather than a threshold — a steadily rising differential pressure tells you the cleaning interval long before efficiency falls.

Blowdown and Wastewater

Chromium: reduce to Cr(III) before you precipitate

Scrubbing chrome mist transfers hexavalent chromium into the scrubbing liquor, and the blowdown from that stage is a hazardous liquid until it is treated. The standard treatment is reduction to trivalent chromium using a reducing agent such as sodium bisulphite, followed by precipitation as hydroxide and separation of the sludge. The reduction step has to happen before the precipitation, because Cr(VI) is soluble across the pH range and will not precipitate out in a conventional hydroxide treatment. A plating shop that treats chrome blowdown as ordinary acid waste will fail its wastewater limits on chromium.

Cyanide: two-stage alkaline chlorination

Cyanide-bearing blowdown is destroyed by oxidation, conventionally by two-stage alkaline chlorination with sodium hypochlorite. The first stage oxidises cyanide to cyanate at high pH; the second stage breaks the cyanate down further. As with chromium, the order and the pH matter: the first stage must be alkaline, because acidifying a cyanide solution generates the very hydrogen cyanide the scrubber was installed to capture. The cyanide scrubber and the cyanide wastewater plant are therefore one system from a safety standpoint, and they should be designed, interlocked and operated as one.

Acid streams: neutralisation and the sulphate load

Blowdown from the acid zones is neutralised, typically with lime or caustic, producing sulphate and chloride salts. The volume is set by how much dissolved solid the recirculating liquor can carry, which in turn depends on the scrubbing chemistry — a liquor that is allowed to concentrate further produces less blowdown but risks scaling on the packing. The salts are usually the least problematic of the plating waste streams, but the volume can be substantial and it belongs in the site’s water balance.

Why segregated blowdown is cheaper than mixed

Because the three treatment routes are different, mixing the blowdown streams makes the combined stream harder to treat than any of them individually: a mixed stream containing chromium, cyanide and acid needs sequential reduction, oxidation and neutralisation with careful pH staging, and the chemistry of each step interferes with the others. Segregated blowdown — three small streams, three simple treatments — is usually cheaper to build and considerably cheaper to operate, and it carries far less risk of an upset in one step defeating the whole plant. The separation is established in the ductwork and the scrubber layout, which is another reason segregation decided at the drawing stage pays for itself in the wastewater plant.

Emission Standards and Monitoring

China: GB 21900 and the electroplating limits

In China, electroplating emissions are regulated by GB 21900, the emission standard for electroplating pollutants, which covers the plating process specifically rather than by way of the general air-pollution standard. It addresses the acid mists and the metals that a plating shop emits, and it is supplemented by the general volatile organic compound standard where a shop also runs degreasing or coating operations. Because GB 21900 is a sector standard, its limits and its monitoring requirements differ from the general standard, and the applicable version should be confirmed at the outset — a design based on the general standard will usually be under-specified for a plating duty.

United States: the chromium NESHAP and OSHA exposure limits

In the United States, chromium electroplating and chromic acid anodising are regulated under national emission standards for hazardous air pollutants that specifically target chromium emissions, with separate provisions for decorative and hard chrome plating and for anodising. Alongside the emission standard sit occupational exposure limits — for hexavalent chromium at 5 µg/m³ as an eight-hour average, and for hydrogen cyanide at around 10 ppm with an immediately dangerous concentration of 50 ppm. Emission limits and exposure limits are separate obligations measured at different places, and a shop can be compliant at the stack while exceeding the limit in the breathing zone, which is a capture problem rather than a treatment problem.

Europe: REACH and the Cr(VI) authorisation regime

In Europe the pressure on chrome plating comes from two directions at once: the industrial emissions regime, which sets emission limits through the permit, and the chemicals regulation, under which hexavalent chromium compounds are classified as substances of very high concern and their use is subject to authorisation. The second has driven many European shops toward trivalent chromium processes, which changes the exhaust chemistry — Cr(III) mist is far less hazardous than Cr(VI) but is still an acid mist that requires scrubbing and mist elimination. If your process is changing, the treatment design should change with it rather than being retained unchanged.

What to measure, and where

• At the stack: the pollutants in the applicable standard, for each segregated stream, at the sampling points the standard specifies.
• In the shop breathing zone: the occupational limits — particularly chromium and hydrogen cyanide — which are governed by capture and ventilation, not by scrubber performance.
• At the tank lip: capture velocity, as a commissioning measurement and on any change to the tank line or the building.
• In each scrubber sump: pH on a continuous reading with dosing control, and the oxidation or reducing potential where a reduction or oxidation step is part of the chemistry.
• Across each packed bed and eliminator: differential pressure, logged as a trend.

Operating a Plating Scrubber

pH control, dosing and the instrumentation that matters

Every stage in a plating scrubber train is pH-controlled, and every stage fails quietly when the control is wrong. A pH probe that has drifted by a full unit produces a scrubber that appears controlled and is not, and the failure appears as a stack exceedance rather than as an alarm. Calibrate on schedule, keep the records, and treat the probe as a consumable rather than as a permanent instrument. Where a chromium reduction or a NOx oxidation step is present, the corresponding potential measurement is equally part of the control loop and equally prone to fouling.

Packing fouling, scaling and cleaning

Plating scrubbers foul faster than most industrial scrubbers because the exhaust carries both particulate and dissolved salts, and because the liquor is deliberately held near saturation to limit blowdown. Monitor pressure drop, inspect the packing on a schedule, and clean before efficiency falls rather than after. Where hardness in the make-up water is high, scale on the packing can be the dominant fouling mechanism, and softening the make-up water is often cheaper than the cleaning it avoids.

Mist eliminator maintenance

The eliminator is the component that converts a well-designed chrome scrubber into a compliant one, and it is the one most often neglected because it sits at the top of the tower out of sight. Inspect it, clean it, and replace damaged elements. On chrome duty, expect salt accumulation and plan the access and the interval for it; on any stage, confirm that the drainage path from the eliminator back into the sump is clear, because an eliminator that cannot drain re-entrains what it captured.

Confined space, chemical handling and hydrogen gas

Tower internals are confined spaces and should be entered under a permit with testing, however routine the task appears. Caustic and acid handling requires the standard provisions — segregation, secondary containment, eye and skin protection, and a spill response that is actually stocked rather than merely documented. And there is a plating-specific hazard worth naming: the exhaust from plating and anodising baths contains hydrogen, evolved at the cathode. In normal operation it is far below the flammable range because the exhaust dilutes it, but a reduction in extraction — a closed damper, a stopped fan, a covered tank — can raise it. Hydrogen accumulation is a second reason why extraction cannot be treated as an optional service during a shutdown.

Choosing an Electroplating Waste Gas Treatment System

The order of decisions is fixed by the chemistry, and it is worth restating because it is the reverse of how equipment is usually sold:

• Survey every tank — chemistry, surface area, temperature, hours of operation — and list the streams. Include the small and occasional processes, especially any nitric or cyanide tank.
• Assign zones before sizing anything. Cyanide separate; chrome separate; acid streams together where the chemistry allows; nitric with its own stage.
• Design capture at the tank, and check it against the shop draughts. This sets the airflow, and the airflow sets everything downstream.
• Lay out the ductwork and calculate the pressure drop on the actual route, then select the fan against the real total.
• Size the scrubbing stages on the required efficiency, not on a round number, and specify the reduction or oxidising step where the chemistry needs it.
• Design the blowdown and its treatment at the same time, routed by stream.

Questions that separate a designed system from a quoted one:

• How was the exhaust volume calculated, and from which tank dimensions and capture velocities?
• Which streams are segregated, and how is the segregation made verifiable?
• Is the chrome stage designed for Cr(VI) reduction, and what is the contact time for it?
• What mist eliminator efficiency is specified, and how is it accessed for cleaning?
• Where nitric acid is used, what is the NO-to-NO₂ ratio and which stage addresses it?
• What happens to the blowdown from each zone, and who treats it?

Why Plating Shops Work With XICHENG EP

We build the whole line rather than one component of it. On the capture side: lateral and push-pull hoods, slot extraction, tank enclosures, polypropylene and FRP ductwork, and the centrifugal fans and blowers that hold the capture velocity at the tank. On the treatment side: packed bed absorption towers, pre-quench sections, reduction and oxidation stages, high-efficiency mist eliminators, and the piping, pumps and instrumentation that hold each zone at its own pH.

Because one manufacturer supplies the hoods, the ductwork, the towers and the fans, the capture volume and the tower sizing are designed together and the pressure drop is calculated on the layout that actually gets built. We work in polypropylene as standard for plating duty, which is the material that survives all four plating exhaust streams and can be fabricated into vessels of the diameter and height a plating line requires. Every system is sized against your tank schedule and your target standard, with the sizing arithmetic documented and handed over.

Our manufacturing base and certificates are on this site — see our certifications and about XICHENG EP.

Frequently Asked Questions

Can one scrubber treat all of a plating shop’s exhaust?
No. Cyanide-bearing exhaust must never share a duct or a scrubber with acid exhaust, because acid contacting cyanide releases hydrogen cyanide gas. Chrome exhaust is also treated separately, and nitric acid needs its own stage. A plating shop is served by a train of zoned scrubbers, not by one tower.

Why is my chrome scrubber passing chromium when the removal efficiency looked good on paper?
Chrome mist is a submicron aerosol, not a gas, so the mist eliminator downstream of the packing does much of the work. Check eliminator condition, salt accumulation and its drainage path before revisiting the packing.

Why does the stack test fail on NOx when the caustic stage removes the acid fine?
Nitric oxide is only sparingly soluble in alkaline solution, so a single caustic stage removes far less NOx than the same stage removes HCl. An oxidising or reducing step is needed ahead of the absorber, sized on the measured NO-to-NO₂ ratio.

Our stack complies but the shop air exceeds the chromium limit. What is wrong?
Capture. The scrubber is cleaning the air that reaches it; the exceedance is in the fraction that never entered the hood. Check the tank capture velocity, the slot uniformity and the shop draughts before adding treatment capacity.

Why does stainless steel ductwork fail in a plating shop?
Grades that look adequate on a general corrosion chart fail by chloride pitting in hydrochloric acid service, with pinhole leaks typically appearing in under two years. Polypropylene is inert to hydrochloric acid at plating concentrations and temperatures and is the material we build plating systems from.

What has to happen to the scrubber blowdown?
It is routed by stream. Chromium blowdown is reduced to Cr(III) with a reducing agent and then precipitated. Cyanide blowdown is destroyed by two-stage alkaline chlorination. Acid blowdown is neutralised. Mixed blowdown is far harder and more expensive to treat than segregated streams.

What does an electroplating waste gas treatment system cost?
The number of zones, the total capture volume from your tanks, the required removal efficiency and the blowdown treatment set the price. Send us your tank schedule and target standard and we will size the capture and treatment train against your line.
