Chemical Waste Gas Treatment
Chemical waste gas treatment is one of the most complex challenges in industrial waste gas treatment. Chemical manufacturing processes generate exhaust streams that can contain acid gases, volatile organic compounds, toxic vapors, and particulate matter in varying concentrations and flow rates. Unlike many other industries where a single pollutant dominates, chemical plants often need multi-technology treatment systems that combine scrubbers, thermal oxidizers, carbon adsorbers, and biofilters. This guide covers the technologies available for chemical waste gas treatment, their design parameters, the specific requirements across chemical industry sub-sectors, and a selection framework for building an integrated treatment system. Effective chemical exhaust treatment requires understanding both the pollutant chemistry and the process variability that distinguishes chemical manufacturing from other industrial sectors.
What Is Chemical Waste Gas Treatment?
Chemical waste gas treatment refers to the set of technologies used to remove pollutants from exhaust streams generated by chemical manufacturing processes. Unlike simpler industrial exhaust streams, chemical plant waste gas can vary in composition from hour to hour as the plant switches between products, batches, or operating conditions.
The Chemical Industry Exhaust Challenge
Chemical manufacturing produces exhaust with three characteristics that distinguish it from other industries. The composition varies widely: a specialty chemical plant may emit HCl during one batch and toluene vapor during the next. The concentration fluctuates: VOC concentrations can range from 10 ppm during idle periods to 5,000 ppm during active reaction. The flow rate changes with production cycles: a batch reactor vent may discharge gas only during specific phases of the reaction cycle.
These variations mean that chemical waste gas treatment systems must be designed for the full range of expected conditions, not just the average. A scrubber sized for average HCl concentration will underperform during peak loading. A thermal oxidizer designed for continuous flow may not operate efficiently on intermittent batch vents.
Regulatory Drivers
The US EPA regulates chemical plant emissions under several MACT standards. The Chemical Manufacturing Area Sources rule (40 CFR 63 Subpart VVVVVV) covers facilities that are major sources of hazardous air pollutants. The Pharmaceutical MACT (40 CFR 63 Subpart GGG) covers pharmaceutical manufacturing. The Polymers and Resins MACT covers multiple subcategories including acrylic resins, polyesters, and polyurethanes.
Beyond the US, the European Union’s Industrial Emissions Directive requires Best Available Techniques for chemical waste gas treatment, and China’s GB 16297 standard sets comprehensive emission limits for chemical industry pollutants.
Pollutants Covered
A complete chemical waste gas treatment system must address four categories of pollutants. Acid gases include HCl, HF, H2SO4 mist, and NOx from nitration and acid concentration processes. Volatile organic compounds include solvents such as toluene, xylene, acetone, methanol, and ethyl acetate. Toxic gases include phosgene, chlorine, hydrogen cyanide, and arsine used or generated in specialty chemical processes. Particulates include catalyst dust, pigment particles, and drying solids that must be captured before the gas stream enters downstream treatment equipment.
Chemical Waste Gas Treatment Technologies
Four technology families form the foundation of chemical waste gas treatment: wet scrubbers for acid gas removal, thermal oxidizers for VOC control, carbon adsorption for solvent recovery, and biological treatment for odor control.
Wet Scrubbers — Packed Bed and Spray Tower
Wet scrubbers are the primary technology for acid gas removal in chemical waste gas treatment. A packed bed scrubber circulates a scrubbing liquid – water, caustic solution, or acid solution – through a bed of random or structured packing where the gas contacts the liquid film on the packing surface.
Packed bed scrubbers achieve 99%+ removal for highly soluble acid gases such as HCl and HF. For SO2 and NO2, the removal efficiency depends on the pH and oxidation potential of the scrubbing solution. A caustic scrubber at pH 8-9 achieves 90-95% SO2 removal. A scrubber using sodium hypochlorite or hydrogen peroxide as an oxidizing agent can achieve 95-99% NO2 removal through chemical oxidation followed by absorption.
Spray tower scrubbers are used when the exhaust stream contains solids that would blind a packed bed. The open-chamber design allows spray towers to handle catalyst dust, polymer fines, and precipitated reaction products without plugging. The trade-off is lower mass-transfer efficiency: a spray tower typically achieves 85-95% removal versus 95-99% for a packed bed at the same L/G ratio.
Chemical scrubber systems can be designed with multiple stages to handle different pollutants in a single vessel. A two-stage scrubber with an acid-stage (pH 2-4) for ammonia and amine removal followed by a caustic stage (pH 8-10) for acid gas absorption is common in pharmaceutical chemical plants where both acid and base vapors are present.
Thermal Oxidizers for VOC Control
When the exhaust contains VOCs that are not removed by wet scrubbing, thermal oxidation is the standard technology. A regenerative thermal oxidizer preheats the incoming gas by passing it through a ceramic heat exchange bed that has been heated by the previous cycle. RTOs achieve 95-99% VOC destruction at thermal efficiencies of 90-97%, making them the standard choice for continuous VOC-laden exhaust streams above 1,000 cfm.
For lower flow rates or batch operations, a recuperative thermal oxidizer uses a shell-and-tube heat exchanger to preheat the incoming gas. The capital cost is lower than an RTO, but the thermal efficiency is lower at 50-75%. For intermittent batch vents where the VOC concentration varies widely, a direct-fired thermal oxidizer with no heat recovery is sometimes the most reliable choice because it maintains destruction temperature regardless of the VOC load.
Carbon Adsorption for Solvent Recovery
When the VOC concentration is above 1,000 ppm and the solvent has economic value, carbon adsorption with steam regeneration is the preferred technology. The exhaust passes through a bed of activated carbon that adsorbs the VOCs. When the carbon bed is saturated, steam is passed through to desorb the captured solvents, which are then condensed and recovered.
Carbon adsorption achieves 95-99% VOC removal for most common solvents at inlet concentrations of 500-5,000 ppm. The operating cost is partially offset by the value of recovered solvent. For chemical plants using toluene, acetone, or ethyl acetate, solvent recovery can generate $50,000-200,000 per year in recovered product value at medium scale.
Biological Treatment for Odor Control
Technology Comparison Summary
Each chemical waste gas treatment technology serves a specific pollutant range and operating condition. Choosing the right technology or combination requires matching the performance characteristics to the exhaust stream.
Technology Target Pollutants Efficiency Range Operating Cost Capital Cost
Packed bed scrubber Acid gases (HCl, HF, SO2) 90-99% Low-Medium Medium
Spray tower scrubber Acid gases + solids 85-95% Low Low-Medium
RTO VOCs (continuous) 95-99% Medium High
Carbon adsorption VOCs (solvent recovery) 95-99% Medium (offset by solvent recovery) Medium
Biofilter Odor, low-concentration VOCs 80-95% Low Low
For industrial waste gas treatment in chemical plants, the cost structure varies significantly between technologies. A scrubber operating cost is dominated by reagent consumption and wastewater treatment. An RTO operating cost is dominated by natural gas for temperature maintenance. Carbon adsorption operating cost is offset by recovered solvent value in many applications.
Design Parameters for Chemical Waste Gas Systems
Designing a chemical waste gas treatment system requires a fundamentally different approach than designing for a steady-state exhaust stream. The variability inherent in chemical manufacturing must be the primary design input.
Gas Characterization
The first step in any chemical waste gas system design is a thorough characterization of the exhaust stream. This requires measuring or estimating the flow rate, temperature, pressure, composition, and variability for each emission source. For batch chemical processes, the characterization must capture the full cycle: the idle-phase flow and composition, the reaction-phase peak, and the transition between products.
A common mistake is to design based on average conditions. A batch reactor producing 500 kg of a specialty chemical may emit 10 ppm of HCl during heating, 500 ppm during the reaction hold, and 2,000 ppm during the quench step. A scrubber designed for 500 ppm average will be undersized for the quench peak and oversized for the heating phase. The correct approach is to design for the peak condition and to include turndown capability for low-load periods.
Removal Efficiency Targets
The removal efficiency required for each pollutant determines which technology or combination of technologies is appropriate. For MACT-regulated HAPs, the required removal is typically 95-98% or an outlet concentration below a specified limit. For VOCs covered by state implementation plans, the requirement is often 90-95% destruction or an outlet concentration below 50 ppm.
The required removal efficiency directly affects the capital cost. Increasing the SO2 removal target from 90% to 99% in a wet scrubber increases the vessel size by approximately 40-60% and the recirculation pump power by 50-80%. For VOC control, increasing the destruction efficiency from 95% to 99% in an RTO increases the required residence time at temperature by a factor of 2-3.
Material Selection for Chemical Resistance
Material selection is more demanding in chemical waste gas treatment than in almost any other industrial sector because the exhaust composition can change unpredictably. A system handling HCl today may handle chlorine or organic chlorides tomorrow. FRP with a vinyl ester resin system is the standard material for scrubber vessels in chemical service because it resists a broad range of acids and organic chemicals. For streams containing strong solvents that attack FRP, stainless steel or lined carbon steel is required.
The ductwork before and after the treatment system must be specified for the same wide range of chemical exposure. PVC and CPVC are used for low-temperature corrosive exhaust. FRP is standard for moderate temperatures. Stainless steel is required for high-temperature or solvent-laden streams.
Safety Considerations
Chemical waste gas systems present unique safety risks. Explosion prevention is the primary concern when the exhaust contains flammable VOCs. All equipment must be designed to prevent ignition sources, and the system must include deflagration venting or suppression if the VOC concentration can enter the flammable range. Corrosion monitoring is essential because a material failure in a chemical exhaust treatment system can release untreated gas or cause a fire.
Performance Verification
After installation, the chemical waste gas treatment system must be tested to verify that it meets the design performance guarantees. The testing protocol should include removal efficiency measurements at full-load and turndown conditions, pressure drop verification at design flow, and material integrity inspection after 30, 90, and 365 days of operation. For batch chemical processes, the testing must capture the worst-case pollutant concentration and flow rate to demonstrate compliance under all operating conditions.
The verification data becomes the baseline for ongoing performance monitoring. Continuous emission monitors for key pollutants, combined with operating parameter tracking (pressure drop, liquid flow rate, pH, temperature), provide the documentation needed for regulatory compliance and permit reporting.
Industrial Applications in the Chemical Sector
Chemical waste gas treatment requirements vary significantly across chemical industry sub-sectors. Each sub-sector has characteristic pollutants and operating conditions that drive the technology selection.
Petrochemical and Refining
Petrochemical plants and oil refineries generate the largest exhaust volumes in the chemical sector. Fluid catalytic cracker exhaust contains catalyst fines, SO2, and CO at flow rates up to 500,000 m3/h. Sulfur recovery unit tail gas contains H2S and SO2 that require incineration or scrubbing. The standard treatment train for petrochemical exhaust combines a wet scrubber for SO2 control with a thermal oxidizer for VOC destruction and a baghouse or wet ESP for particulate capture.
Chemical plant exhaust scrubber systems in refineries must handle gas temperatures from 50-300°C depending on the source. The SO2 concentration ranges from 50-2,000 ppm, and the scrubber design must accommodate the full range without losing efficiency.
Specialty and Fine Chemicals
Specialty chemical manufacturers produce a wide range of products in relatively small volumes, often in multi-purpose batch reactors. The exhaust from a single reactor may contain different pollutants depending on the product being made. A reactor producing an acid chloride intermediate may emit HCl and phosgene. The same reactor producing an amine intermediate the next week may emit ammonia and organic vapors.
The standard approach for specialty chemical plant exhaust scrubber systems is a flexible multi-stage configuration: a quench stage for gas cooling and particulate removal, a packed bed scrubber with switchable chemistry (acid or caustic depending on the process), and a carbon adsorption or thermal oxidizer stage for VOC polishing. This multi-stage design for chemical waste gas treatment allows the same equipment to handle widely different exhaust compositions as the product campaign changes.
Pharmaceutical Manufacturing
Pharmaceutical manufacturing generates exhaust containing solvents used in the synthesis and formulation of active pharmaceutical ingredients. Common solvents include methanol, ethanol, acetone, dichloromethane, and ethyl acetate. The total VOC load can range from 50-5,000 ppm depending on the process stage. Pharmaceutical reactors are typically cleaned between batches, producing additional solvent-laden exhaust from the cleaning process that must be included in the treatment system sizing.
The Pharmaceutical MACT standard requires 99% destruction or removal of total HAPs or an outlet concentration below 20 ppmv. RTO technology is the most common compliance approach for continuous processes operating above 2,000 cfm with consistent VOC loads. For batch processes with variable flow and intermittent operation, carbon adsorption with solvent recovery is often preferred because it captures solvents for reuse and reduces the operating cost. The recovered solvent value at a typical pharmaceutical plant can offset 30-60% of the treatment system operating cost.
Agrochemical and Fertilizer Production
Fertilizer and agrochemical plants produce exhaust containing ammonia, HF, SiF4, and acid mists. The treatment system typically includes a wet scrubber using water or dilute acid for ammonia recovery, followed by a caustic scrubber for HF and SiF4 removal. The ammonia recovered in the scrubber is recycled to the fertilizer process, reducing raw material consumption. HF removal efficiency above 99% is achieved at an L/G ratio of 0.5-1.0 L/m3 using water as the scrubbing medium.
Polymer and Resin Manufacturing
Polymer production exhaust contains monomer vapors, solvents, catalyst fines, and in some cases, hydrogen chloride from the polymerization process. Polystyrene and ABS resin plants emit styrene monomer at 100-1,000 ppm. PVC manufacturing emits vinyl chloride monomer and HCl. The standard treatment combines a scrubber for acid gas removal with a thermal oxidizer or carbon adsorber for monomer and VOC control.
System Selection and Integration
Selecting a chemical waste gas treatment system requires matching the technology to the pollutant mix, the variability pattern, and the economic constraints of the specific plant. The chemical exhaust treatment system must handle the full range of expected conditions, not just the average.
Technology Selection Decision Framework
The selection process follows three screening stages.
Stage 1 — Pollutant identification. Classify the exhaust by pollutant category: acid gases, VOCs, toxic gases, or particulates. If the exhaust contains acid gases above 50 ppm, include a wet scrubber. If it contains VOCs above 200 ppm, include a thermal oxidizer or carbon adsorber. If it contains both, the scrubber should be placed upstream of the thermal oxidizer to remove acid gases that would corrode the oxidizer heat exchanger.
Stage 2 — Concentration and flow profile. Characterize the variation pattern. Steady continuous processes with constant composition can use a single-technology system sized for the average condition. Batch processes with variable composition require a multi-technology system with turndown capability. Intermittent vents with peak concentrations 5-10 times the average require a buffer or a system sized for the peak.
Stage 3 — Economic screening. For each technology combination, estimate the capital cost, the annual operating cost, and the total cost of ownership over 10 years. Include energy cost for thermal oxidizers, reagent cost for scrubbers, carbon replacement cost for adsorbers, and the value of recovered solvents where applicable. For a typical specialty chemical plant with 10,000 cfm of exhaust containing 500 ppm VOCs and 100 ppm HCl, a combined scrubber-plus-RTO system would have a capital cost of $400,000-800,000 and an annual operating cost of $60,000-120,000 depending on the VOC load and the local utility rates.
Stage 4 — Safety review. Evaluate the explosion risk, the corrosion potential, and the chemical compatibility of all system components with the full range of expected exhaust compositions. For exhaust streams that can contain flammable VOCs, include lower explosion limit monitoring and system bypass or dilution controls. The safety review must also address the chemical storage and handling requirements for any reagents used in the treatment system, including caustic soda, acids, and oxidizers.
Multi-Technology System Integration

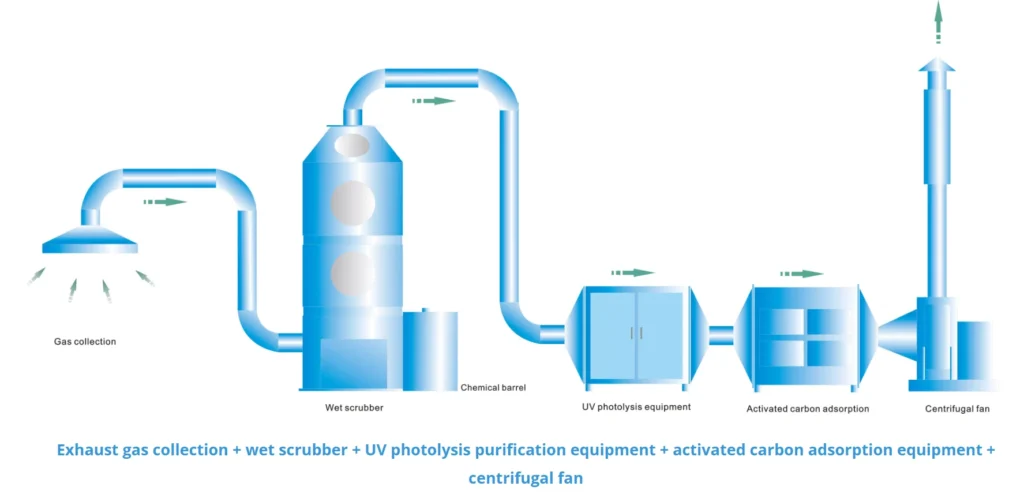

Most chemical waste gas treatment systems combine multiple technologies in series. A typical arrangement for a specialty chemical plant processing both acid gases and VOCs is: quench tower for gas cooling and bulk particulate removal, packed bed scrubber for acid gas absorption, mist eliminator for droplet capture, and RTO for VOC destruction. The acid gas removal in the scrubber protects the RTO heat exchanger from corrosion, and the RTO heat recovery can preheat the scrubber outlet gas to reduce steam consumption.
Key Questions for System Suppliers
When evaluating proposals, request the design basis. The supplier should provide the design gas composition and flow rate for each operating case, the removal efficiency guarantee for each pollutant, the turndown ratio and performance at minimum flow, the materials of construction for all wetted components, the utility consumption (power, water, steam, compressed air) at full load, and the control system architecture for managing composition and flow variations.
For more information on specific technologies, see our guide on \1 and \1. \1 for a preliminary system design for your chemical waste gas application.
FAQ
What technologies are used for chemical waste gas treatment?
The four main technology families are wet scrubbers (for acid gases), thermal oxidizers (for VOCs), carbon adsorbers (for solvent recovery), and biological treatment (for odor control). Most chemical plants use a combination of these technologies in series rather than a single technology. The choice depends on the specific pollutants present, which is why industrial waste gas treatment in the chemical sector requires a multi-technology approach.
How does chemical waste gas treatment differ from other industries?
Chemical plant exhaust varies widely in composition and flow rate as production changes between products and batches. Treatment systems must be designed for the full range of conditions, not the average. Safety considerations including explosion prevention and corrosion resistance are also more demanding than in most other industries.
What is the best technology for VOC control in chemical waste gas?
The best technology depends on the VOC concentration, the flow rate, and the continuity of operation. For continuous flows above 1,000 cfm with VOC concentrations above 100 ppm, a regenerative thermal oxidizer is the most cost-effective option. For batch operations or intermittent vents, carbon adsorption with solvent recovery is often preferred when the solvent has economic value.
What are the main regulatory requirements for chemical waste gas treatment?
In the US, chemical plants are regulated under several MACT standards including the Chemical Manufacturing Area Sources rule (40 CFR 63 Subpart VVVVVV) and the Pharmaceutical MACT (40 CFR 63 Subpart GGG). These standards require 95-99% removal of hazardous air pollutants depending on the specific source category.
Can a single scrubber handle multiple pollutants?
Yes, a single scrubber can remove multiple acid gases simultaneously, but it cannot remove VOCs, toxic gases, or particulates using the same mechanism. Two-stage scrubbers with different chemistry in each stage can handle both acid and base vapors. For complete treatment, a scrubber must be combined with other technologies such as thermal oxidation or carbon adsorption.
What materials are used for chemical waste gas scrubbers?
FRP with a vinyl ester resin system is the most common material for chemical service because it resists a broad range of acids and organic chemicals. PVC is used for low-temperature corrosive exhaust. Stainless steel is required for high-temperature streams or where organic solvents attack FRP.
Key Takeaways
Chemical waste gas treatment requires multi-technology systems that combine scrubbers, thermal oxidizers, carbon adsorbers, and biofilters because chemical plant exhaust contains acid gases, VOCs, toxic gases, and particulates simultaneously.
Design must be based on peak conditions, not averages. Batch chemical processes can produce pollutant concentrations 5-10 times higher during reaction phases than during idle periods, and the treatment system must handle the full range.
A packed bed scrubber achieves 99%+ removal for HCl and HF, while a two-stage scrubber with switchable chemistry can handle both acid and base vapors in multi-purpose chemical plants.
Regulatory compliance under EPA MACT standards requires 95-99% removal of hazardous air pollutants. The technology selection is driven by the specific MACT standard applicable to the chemical sub-sector.
Material selection is more demanding in chemical service than any other industry. FRP vinyl ester is the standard, but stainless steel or lined carbon steel is required for solvent-laden streams or high-temperature exhaust.
Operating cost varies significantly by technology: scrubber cost is dominated by reagent consumption, RTO cost by natural gas, and carbon adsorption cost can be partially offset by recovered solvent value. A thorough TCO analysis should include all utility and waste disposal costs.
