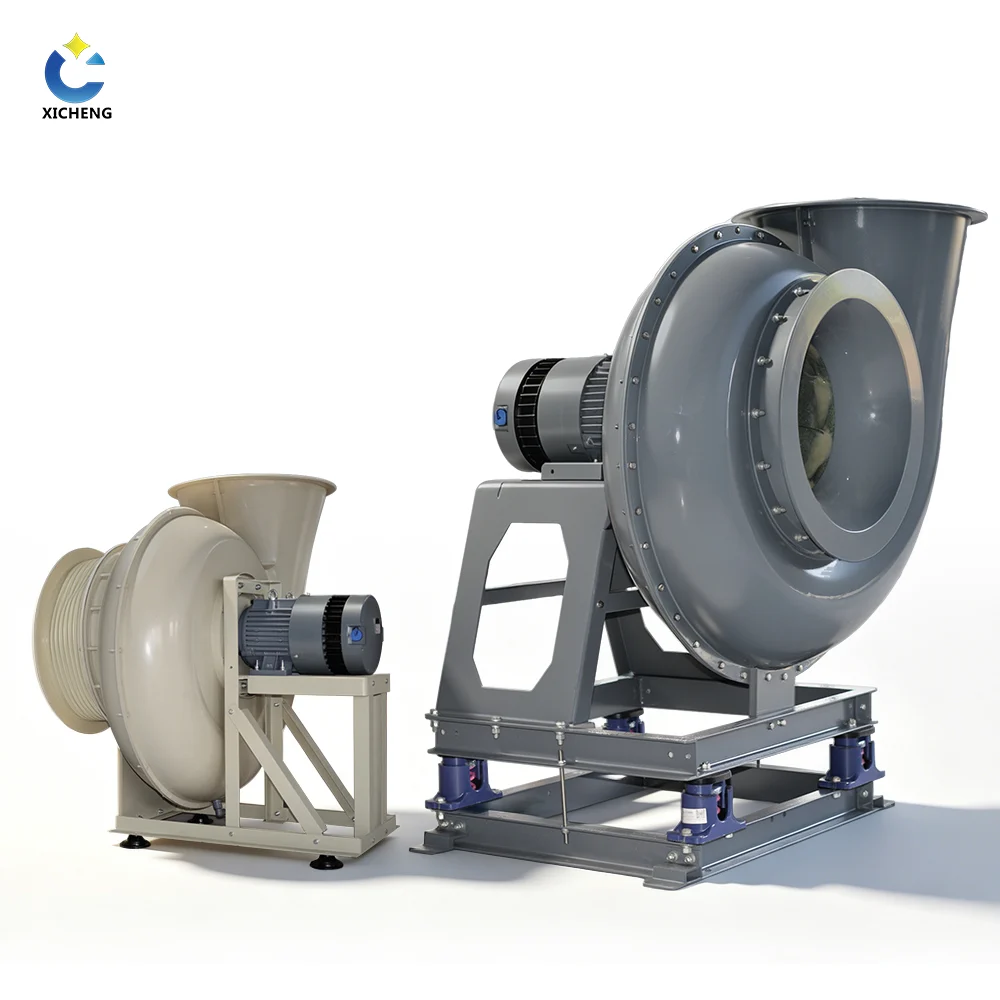

Permanent Magnet Fan | PP | FRP

The Ultimate Industrial Workhorse: Why Next-Gen Facilities Deploy XICHENG Permanent Magnet Fans

If you are a Plant Engineer designing a centralized chemical-grade duct network, an EHS Director tracking continuous air change compliance, or a Global Procurement Manager under immense corporate pressure to slice vendor OpEx, your inbox is likely flooded with standard industrial catalog PDFs.

Those catalogs look virtually identical: a sea of blue or grey utility blowers backed by clean tables of volumetric airflows and static pressures. But those vendors will never tell you the truth about what happens out in the real world—where your ventilation equipment must run 24/7 in an absolute corrosive, high-vibration hell. Out there, you are constantly trapped in a costly, high-stakes material and electrical science dilemma:

• The Inefficient VFD Throttling Pitfall: To meet varying process demands, you install a standard AC induction blower and run it through a standard Variable Frequency Drive (VFD). But standard induction motors suffer a massive loss of efficiency and power factor drops when slowed down. You think you are saving power, but your electric utility meter is still spinning out of control—turning your factory floor into an energy-wasting sinkhole.

• The Mechanical Maintenance Nightmare: You stick with a traditional belt-driven fan to allow mechanical speed tuning. Within months, the high-humidity, acidic vapors in your extraction lines stretch the drive belts. They begin to slip, lose speed, degrade airflow, and eventually snap mid-shift. Your plant maintenance crew spends valuable hours in respirators retensioning pulleys and packing grease into pillow block bearings while your production line sits dead.

[Traditional AC Induction Fan Under Low-Frequency Load]
                          │
            ┌─────────────┴─────────────┐
            ▼                           ▼
   [Standard VFD Throttling]     [Traditional Belt-Drive Setup]
            │                           │
   (Severe Induction Drop)        (Pulley Slippage & Wear)
            │                           │
      ┌─────┴─────┐               ┌─────┴─────┐
      ▼           ▼               ▼           ▼
[Inflated Power Bills] [Loss] [Sudden Belt Snapping] [Production Halt]

This structural dead-end is precisely why the Permanent Magnet Fan has moved from an engineering luxury to an absolute operational mandate for modern factories. By fusing high-coercivity Permanent Magnet Synchronous Motor (PMSM) physics with a rugged, direct-drive industrial architecture, these systems represent the ultimate evolution in heavy-duty fluid dynamics.

Yet, navigating the international sourcing market introduces a completely different layer of anxiety: the “Marketplace Race to the Bottom.” You are flooded with dirt-cheap quotes from unverified regional machine shops. Your purchasing KPIs tempt you to take the discount. But your engineering logic screams: If this unbranded motor burns out or its controller trips under a high-frequency spike, forcing a three-day factory shutdown, will I be the corporate scapegoat who answers to the executive board?

This comprehensive technical blueprint cuts through the online noise. We will analyze the strict electromagnetic performance profiles, molecular resin options, and automated engineering tolerances that separate a lifelong industrial workhorse from a hazardous workshop replica. By the time you finish scrolling, you will have the hard data required to justify a premium hardware selection to your CFO, clear your regional environmental audits, and lock in absolute operational peace of mind with a genuine XICHENG Permanent Magnet Fan.

Electrodynamic Domination: The Quantum Leap in Motor Efficiency

To understand why a premium Permanent Magnet Fan outperforms and outlasts traditional three-phase induction machinery, you must look beneath the motor casing at the physics of magnetic flux generation.

Induction Losses vs. Synchronous Flux Permanence

A traditional asynchronous induction motor relies on electrical current drawn from the grid to induce a magnetic field in the rotor windings. This continuous induction process generates substantial “rotor copper losses” and localized thermal heat, causing energy to escape as waste radiation before the shaft even begins to turn.

Standard Induction: Grid Power ──► Rotor Windings ──► Heavy Core Heat ──► Efficiency Drop

The XICHENG Permanent Magnet Fan completely rewrites this equation. The rotor is embedded with rare-earth permanent magnets that possess exceptional magnetic coercivity. Because the rotor maintains its own native, permanent magnetic field, it requires zero excitation current from the grid to magnetize the core.

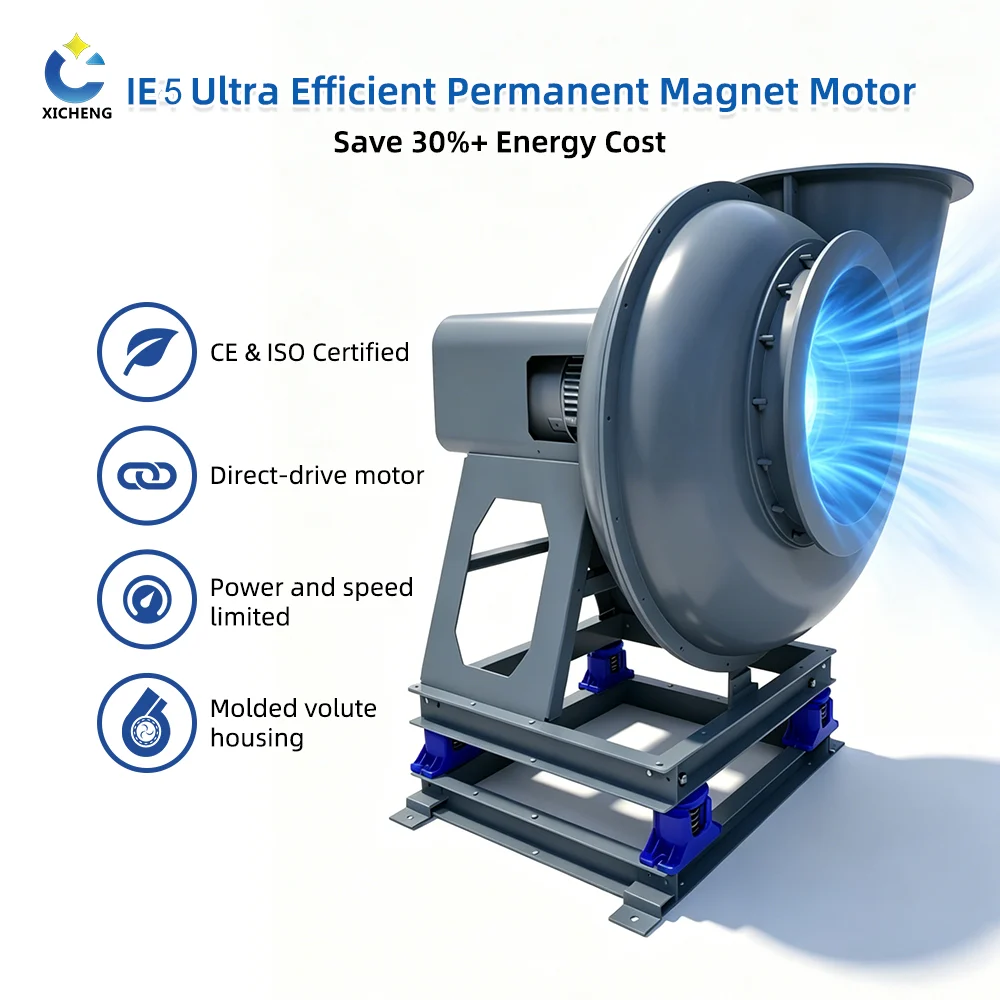

The rotor locks instantly onto the rotating stator magnetic field with zero slip. This allows our Permanent Magnet Fan systems to achieve IE5 Ultra-Premium Efficiency benchmarks, maintaining an incredibly flat efficiency curve even when operating at a low 30% partial load capacity.

Eliminating the VFD Harmonic Distortion Trap

When standard induction motors are modulated via low-tier VFDs, they generate severe high-frequency harmonic distortions back into your factory’s electrical grid. These harmonics cause nearby sensitive laboratory equipment to miscalibrate, generate annoying electromagnetic acoustic hums, and cause premature insulation breakdown in the motor windings.

XICHENG couples every Permanent Magnet Fan with a precision-matched, intelligently vector-controlled sinusoidal drive. This advanced controller operates with high-speed field-oriented control (FOC) algorithms, delivering silky-smooth torque output with minimal total harmonic distortion (THD). The result is dead-silent operation across all frequency bandwidths and total protection for your plant’s internal power distribution network.

Structural Integrity: Defeating Corrosive Gas Exhaust Streams

A highly efficient motor is useless if the fan housing or impeller dissolves under the assault of industrial process chemistry. XICHENG marries advanced electrodynamics with world-class polymer material science.

Seamless One-Piece Solid Molding with G6.3 Precision Balancing

When sourcing ventilation hardware online, many buyers unknowingly purchase fans featuring manually welded plastic components. In these low-tier operations, workers cut out flat plastic sheets and hand-weld them to a central hub using plastic extrusion guns. This primitive approach introduces massive, hidden structural flaws: internal air bubbles, residual thermal stress lines, and joint fatigue points that rapidly fracture under the continuous centrifugal pull of a 2,900 RPM operating speed.

[Automated Injection Molding] ──► Solid Material Uniformity ──► Zero Weld Lines ──► Structural Security

XICHENG has eliminated manual joints from our primary rotating assemblies. Our standard-duty Permanent Magnet Fan units feature an optimized, modified co-polymer Polypropylene (PP) impeller manufactured using automated, high-pressure one-piece injection molding. Because the entire impeller is formed as a single, continuous piece inside a solid tool mold, the material density is perfectly uniform from the tip of the blade to the center axis. Every assembly is dynamically balanced to strict ISO G6.3 parameters, completely eliminating fatigue accumulation under combined centrifugal and negative pressure loading.

Tailored Material Selection for Your Specific Chemical Envelope

Depending on your exact process chemistry and gas temperatures, XICHENG customizes the fluid-contacting surfaces of your Permanent Magnet Fan to ensure total chemical immunity:

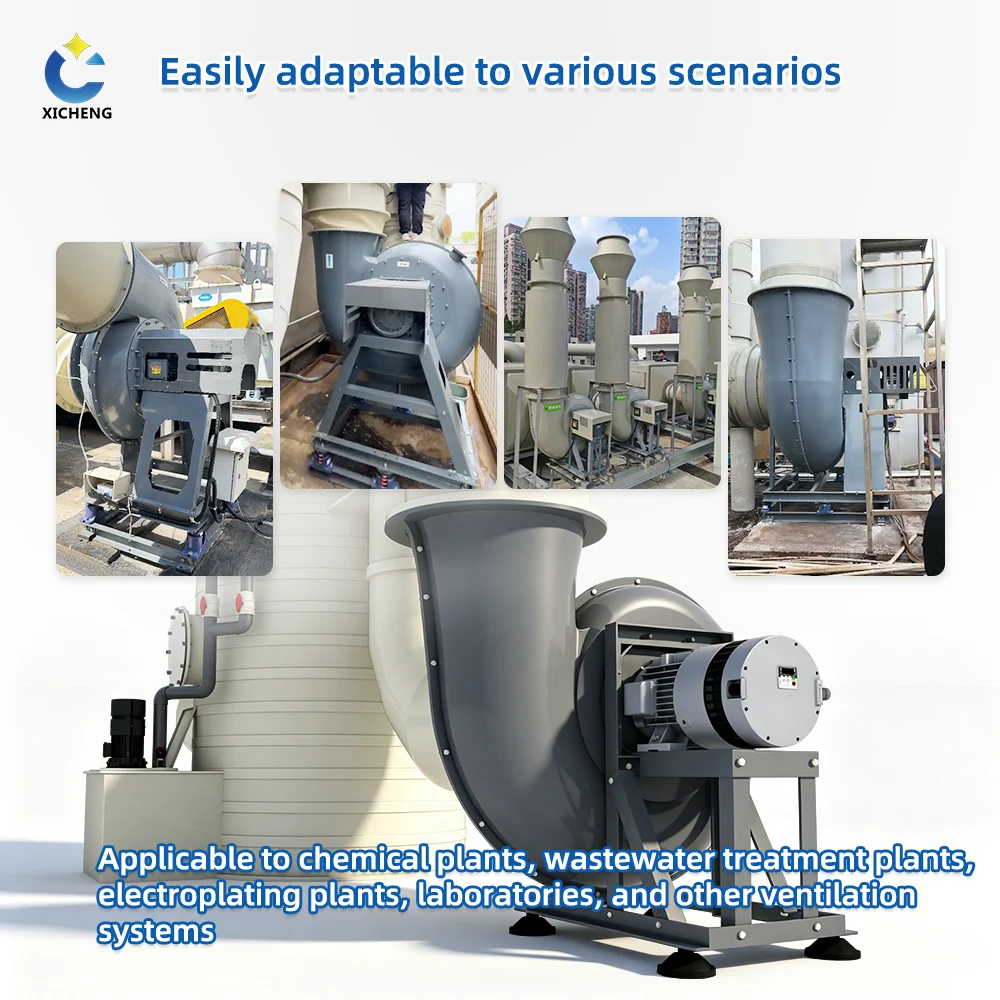

• PP Volute + Enhanced PP Impeller Layout: Our standard-duty configuration. Perfectly optimized for the ventilation of corrosive gases, salt mists, electroplating acid mists (HCl, H2SO4, HNO3), and general laboratory chemical vapors at operating temperatures of  60%.

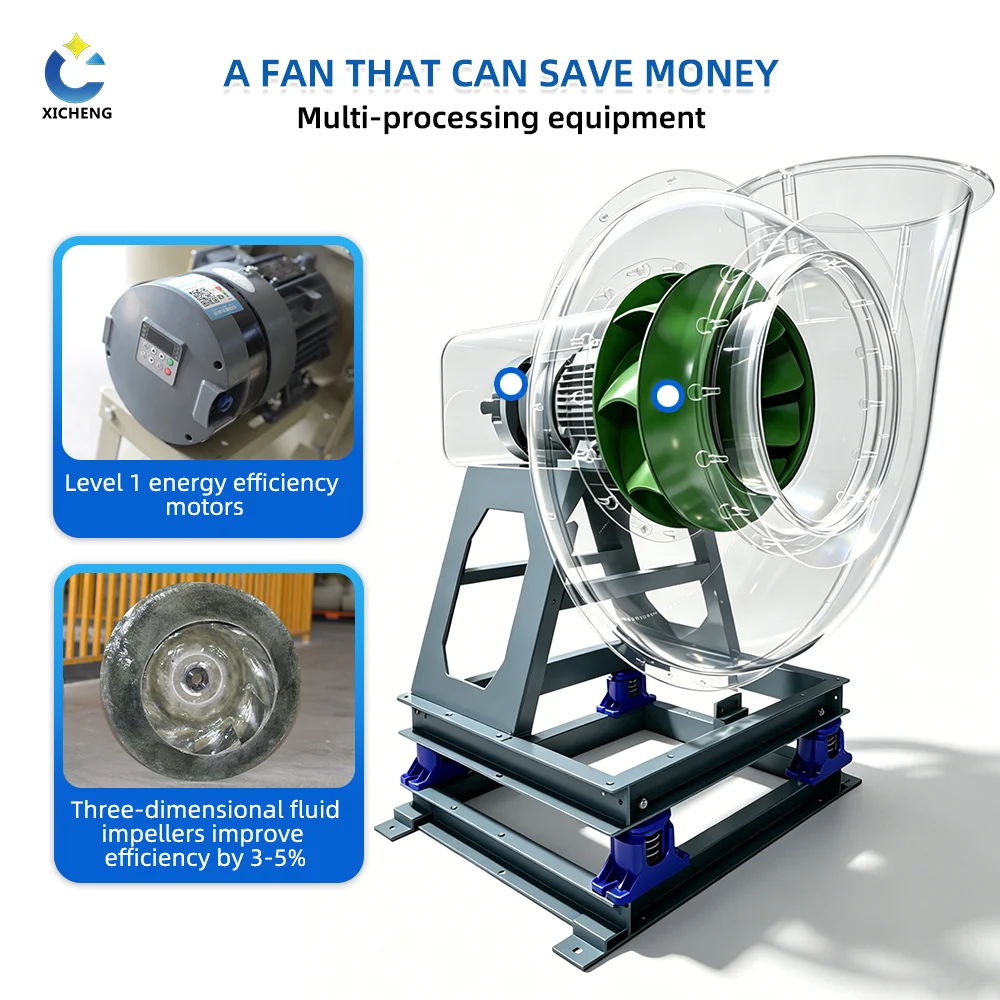

• FRP Volute + FRP Composite Impeller Layout: Our heavy-duty, high-load configuration. Engineered with premium vinyl ester thermosetting resins cross-linked with continuous glass fiber filaments. This structure delivers incredible mechanical tensile strength (>250 MPa) and total structural immunity against highly concentrated, aggressive chemical gases at elevated operating temperatures up to 80%.

Aerodynamic Engineering: Deconstructing the F4-72 Curvature Matrix

An inefficient ventilation system does more than just move air poorly—it slowly drains your company’s operational budget through inflated utility costs.

Many local fabrication shops cut corners by using flat, paddle-wheel blades because they are cheap and easy to bend. However, these primitive shapes cause massive air separation, turbulence, and low-pressure eddy currents inside the volute housing. To overcome this aerodynamic inefficiency and hit your required static pressure, you are forced to purchase an oversized motor, resulting in massive energy waste.

[Intake Airflow] ──► F4-72 Fluid-Dynamic Curvature ──► Laminar Boundary Layer ──► Max Efficiency Air Moving

XICHENG’s complete family of Permanent Magnet Fan products is engineered around the rigorous F4-72 aerodynamic design paradigm. Our backward-curved impeller blades feature an optimized mathematical curvature that aligns with natural fluid flow paths.

By ensuring that the process gas follows a smooth, laminar boundary layer along the blade surface, we drastically reduce internal drag and maximize static efficiency. Operating smoothly within design points of 1,000 to 1,150 Pa, our blowers move significantly more volume per kilowatt-hour, dropping your power consumption by up to 30%.

System Parameters & Configuration Schematics

To help your project team streamline the engineering and integration phase, XICHENG offers transparent, verified performance matrices. We do not use speculative performance ranges; our specifications are validated through strict quality management loops.

Standardized Engineering Specifications

Whether you are engineering a single laboratory containment hood or managing a massive, centralized chemical recovery loop, our equipment platform scales to meet your exact parameters:

• Airflow Handling Volume: Standard models handle 2,000 to 8,000 m3/h. Custom engineering capacity scales seamlessly up to 80,000 m3/h for heavy industrial installations.

• System Rated Static Pressure: Optimized design points ranging from 1,000 to 1,150 Pa.

• Standard Motor Power Scale: Spans from 0.75 kW to 11 kW (Custom horsepower variants and explosion-proof motors available upon request).

• Operating Shaft Speeds: 1,440 RPM or 2,900 RPM synchronous speed.

Unique Maintenance Advantages of the XICHENG Layout

When you upgrade your facility to a XICHENG direct-drive Permanent Magnet Fan, you unlock unique structural defenses that protect your plant from extended maintenance shutdowns:

• Motor Physically Isolated from Corrosive Airstream: Our innovative layout ensures that even in a direct-drive setup, advanced PTFE labyrinth seals prevent hazardous process gases from migrating out of the housing and reaching your motor bearings.

• Motor Replacement Without Impeller Removal: Unlike poorly designed traditional fans where swapping a motor means completely tearing down the fluid housing and breaking the duct seals, XICHENG’s configuration allows a failed motor to be swapped out from the back in a matter of hours. The impeller, shaft, and casing remain completely undisturbed.

Industrial Infrastructure: Why XICHENG is the Global Base for 2,800+ Heavy Systems

When you select an industrial equipment vendor via an international digital platform, you aren’t just purchasing hardware—you are choosing a critical long-term supply chain partner. You need concrete proof that your supplier has the physical infrastructure, financial stability, and regulatory credentials to back your project over a multi-decade lifecycle.

Unmatched Production Scale: 16 Years, 40+ Integrated Bases & Offices

XICHENG Environmental Protection (XICHENG EP LTD) does not operate out of a single regional workshop. Backed by 16 years of specialized expertise in industrial environmental equipment manufacturing and exhaust treatment R&D, our structural footprint spans over 40 production bases and regional corporate offices across China.

Our central international advanced manufacturing center operates out of a state-of-the-art facility located at:

No.34 Zhenxing Road (Shengtaian Heavy Industrial Park B), Loucun, Guangming New Dist, Shenzhen, Guangdong, China.

This immense manufacturing capacity ensures we maintain absolute control over our raw materials supply chain. While standard trading intermediaries quote lengthy 60-to-90 day delivery turnarounds, XICHENG maintains a highly reliable standard production timeline of just 15 to 25 days. Whether you are working to hit a tight construction milestone or replacing a failed fan to restart a stopped production line, our massive capacity guarantees your equipment ships on schedule.

[Traditional Supply Chain]: Fabricator ──► Exporter ──► Local Distributor ──► Agent ──► YOU (Price + 40%)
[XICHENG Direct Route]:     XICHENG Advanced Global Manufacturing Center ───────────────► YOU (True Factory Cost)

Verified Compliance: Global Testing and Certification Credentials

We recognize that procurement directors and project managers are under intense scrutiny from corporate legal departments, internal auditors, and strict external regulatory bodies. You can’t accept unverified performance claims; you require independent, international proof of quality.

XICHENG’s entire design, production, and material testing workflow is thoroughly certified by the world’s leading standardization bodies:

• CE Certified: Our scrubbers, exhaust fans, Permanent Magnet Fan units, and air valves comply with all applicable European health, safety, and environmental protection directives.

• RoHS Compliant: All materials utilized within our adsorption towers and structural components are verified free of hazardous substances.

• ISO 9001 Approved: Our entire quality management workflow—from incoming raw material tracking to final vibration testing—is thoroughly audited and certified.

• ISO 14001 Registered: Our production bases operate under strict environmental management systems, ensuring our own manufacturing methods are just as clean as the air treatment systems we build.

• SGS Tested & Approved: Our raw PP sheets, PPS flame-retardant plates, PP pipes, and PVC sheets undergo rigorous independent physical and chemical stress testing by SGS.

With over 2,800 industrial systems working smoothly across 50+ countries, XICHENG provides true one-stop solutions. From initial site surveys and fluid process design to installation, commissioning, and long-term O&M, we have already resolved the exact operational anxieties you face today.

FAQ: Demolishing Information Asymmetry in Industrial Sourcing

Q1: Can a XICHENG Permanent Magnet Fan handle explosive or explosive-adjacent chemical vapors?

A: Yes. For hazardous environments such as pharmaceutical synthesis or chemical pickling lines, XICHENG equips the Permanent Magnet Fan with ATEX-certified or IECEx-certified explosion-proof permanent magnet synchronous motors coupled with specialized anti-static polymer housings.

Q2: What is the true investment payback period (ROI) when switching from an induction fan to a Permanent Magnet Fan?

A: Because our IE5-rated Permanent Magnet Fan systems slash energy consumption by 15% to 30% and eliminate belt/bearing replacement costs, the typical medium-to-large facility achieves complete capital cost payback (ROI) within 12 to 18 months of continuous 24/7 operation.

Take Action: Secure Your High-Efficiency Factory Blueprint Today

Don’t let inefficient motor slip, weak manual welds, or inflated utility bills compromise the safety, compliance, and profitability of your production facility. Upgrading to a genuine XICHENG Permanent Magnet Fan air-moving system is the smartest way to eliminate unplanned maintenance downtime, lower your monthly energy consumption, and ensure your facility easily clears its next regulatory environmental inspection.

Our application engineering group is ready to help you convert your current project blueprints into an optimized, high-performance physical reality. Contact our international business office directly today to receive:

1. A fully customized, itemized factory-direct quote tailored to your exact performance targets.

2. Complimentary 3D CAD modeling and static pressure system configuration reviews.

3. Direct access to our senior fluid dynamics specialists to verify your material selections.

Get in touch with us through our direct business channels and let’s build a cleaner, safer, and more efficient industrial environment together:

• 📮 Official Inquiry Email: fanalax@gmail.com

• ☎️ Direct Engineering Hotline: +86 18126478161

• 🎯 Global Headquarters: No.34 Zhenxing Road (Shengtaian Heavy Industrial Park B), Loucun, Guangming New Dist, Shenzhen, Guangdong, China.
