The Complete Production Process of Square Polypropylene Ducts: A Comprehensive Manufacturing Guide

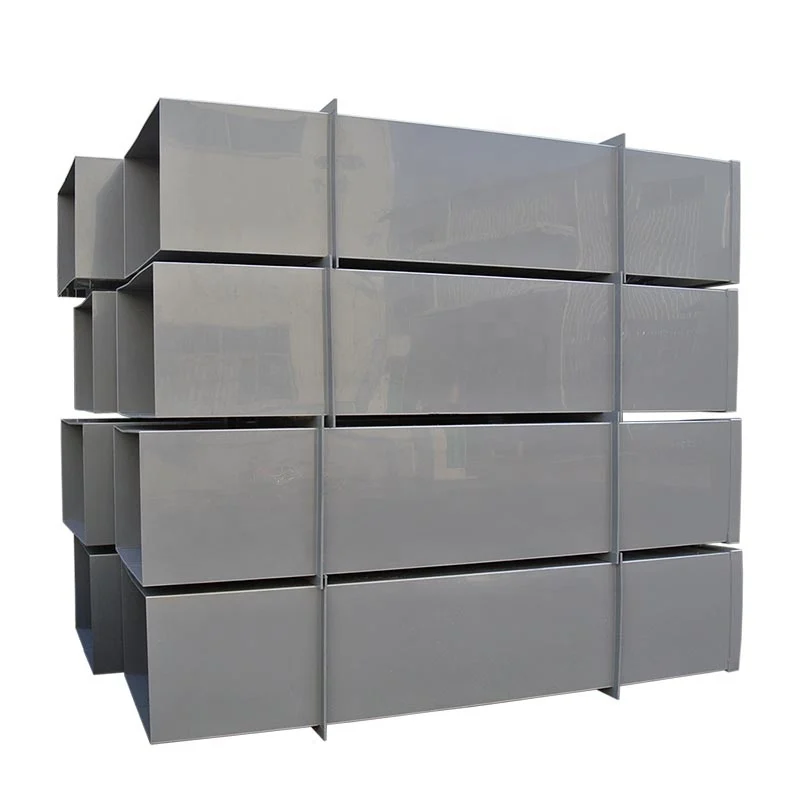

Understanding Square Polypropylene Ducts and Their Industrial Applications

Primary Applications for Square PP Duct Systems:

• Laboratory fume exhaust and chemical ventilation
• Pharmaceutical cleanroom HVAC systems
• Semiconductor manufacturing facility exhaust
• Industrial waste gas treatment plants
• Plating and surface treatment facilities
• Chemical processing plant corrosive gas handling

Step 1: Material Selection for High-Quality Square Polypropylene Ducts

Base Material Requirements:

• PP Sheet Grade: Conforms to GB/T 12670 international standards
• Thickness Specifications based on duct dimensions:
  • Ducts ≤ 500mm width: 3-5mm wall thickness
  • Ducts 500-1000mm width: 5-8mm wall thickness
  • Ducts ≥ 1000mm width: 8-12mm heavy-gauge thickness
• Special Grades: B1-grade flame-retardant PP for fire-sensitive installations

Essential Auxiliary Materials:

• Homogeneous PP welding rods with matching melt index
• PP flange plates (equal or greater thickness than duct walls)
• Structural reinforcing ribs and support components
• Chemical-resistant gaskets for flange connections

Step 2: Precision Cutting and Layout for Square PP Duct Fabrication

Cutting Process Specifications:

• CAD Nesting: Optimized sheet layout to minimize material waste
• Cutting Methods: CNC routers, circular saws, or precision plasma cutting
• Dimensional Tolerance: Maintained within ±2mm across all panels
• Edge Preparation Techniques:
  • 30° V-groove machining for butt welds (≥5mm thickness)
  • Complete burr removal from all cut edges
  • Seamless bottom edge requirement for ducts under 800mm width (no longitudinal joint)

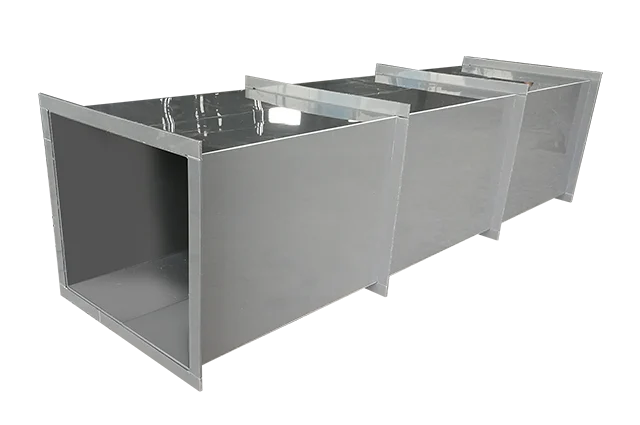

Step 3: Bending and Forming – The Defining Process for Square Polypropylene Ducts

Specialized Bending Equipment and Parameters:

• Pre-Heating: Localized heating at bend lines to 130-150°C (PP softening temperature)
• Minimum Bend Radius: 3× sheet thickness to prevent stress cracking
• Angle Precision: ±0.5° tolerance for perfect 90° corners

Three Standard Forming Methods for Square PP Duct:

1. Single-Sheet Continuous Fold (small to medium ducts)
   • One complete sheet folded into four sides with only one longitudinal weld
   • Maximum structural integrity, minimum leakage points
2. Two-Piece L-Shape Assembly (medium to large ducts)
   • Two L-shaped sections bent separately, then welded together
   • Balances strength and manufacturing efficiency
3. Four-Panel Construction (extra-large custom ducts)
   • Four individual panels fabricated, then assembled into rectangle
   • Only method for dimensions exceeding bending machine capacity

Step 4: Welding Assembly Techniques for Square Polypropylene Ducts

1. Hot Air Welding (Standard Production Method)

• Temperature Control: 240-280°C at welding nozzle
• Welding Rod: 3-4mm diameter homogeneous PP material
• Weld Configurations:
  • Single-sided weld for materials under 5mm thickness
  • Double-sided U-groove weld for materials 5mm and thicker (superior strength)
  • Interior corner lap welds for additional structural reinforcement

2. Extrusion Welding (Heavy-Gauge Ducts)

• Reserved for Square Polypropylene Ducts exceeding 1000mm width and 8mm thickness
• Continuous molten PP extrusion creates monolithic weld joints
• Delivers 30-40% higher strength compared to hot air welding

3. Butt Fusion Welding (Section Joining)

• Used for end-to-end connection of straight duct sections
• Heating plate maintained at 210±5°C
• Fusion pressure precisely controlled at 0.15-0.25MPa
• Creates completely seamless, leak-proof connections

Step 5: Structural Reinforcement for Large Square PP Duct Systems

Mandatory Reinforcement Requirements:

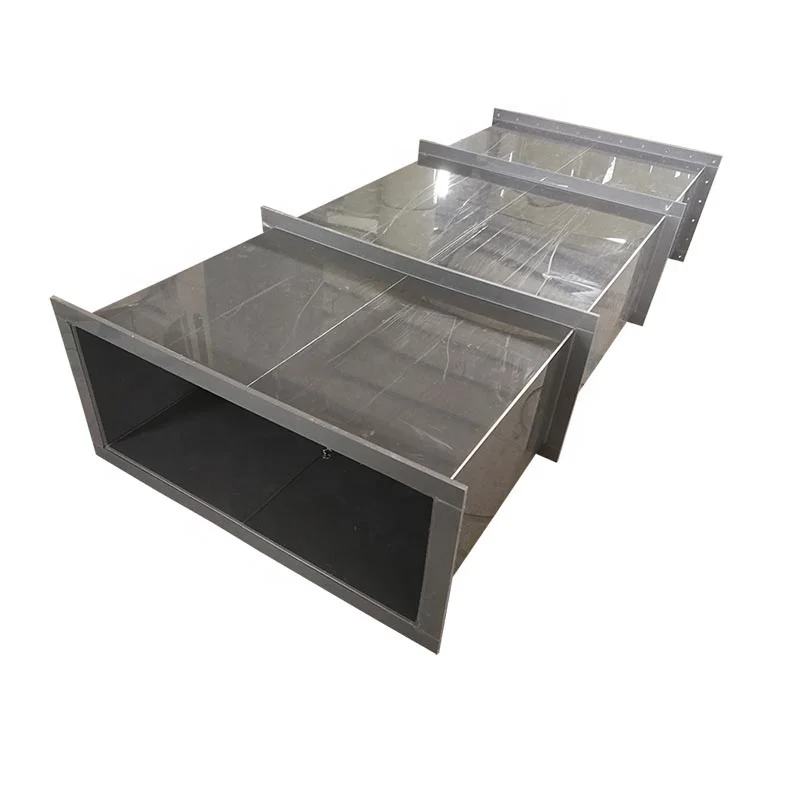

Flange Reinforcement (All Duct Sizes)

• PP flange plates welded to both ends of each duct section
• Bolt hole spacing: ≤150mm standard, ≤120mm for ducts over 1500mm
• Flange thickness matches or exceeds duct wall thickness

Intermediate Structural Reinforcement (Large Ducts)

• Ducts > 1000mm width: Transverse PP stiffeners every 1000mm
• Ducts > 2000mm width: Both transverse and longitudinal stiffening system
• Corner gusset plates installed on all ducts exceeding 1500mm width

Critical Post-Welding Treatment:

• Natural Cooling Period: Minimum 24 hours at ambient temperature
• No forced cooling or mechanical stress during curing
• Ageing treatment before installation to relieve residual welding stresses

Step 6: Professional Connection Methods for Square Polypropylene Duct Installation

1. Flange Connection (Primary Industry Standard)

• PP flange-to-flange connection with EPDM or Viton chemical-resistant gaskets
• Bolts tightened uniformly in diagonal sequence to prevent distortion
• Recommended for all large ducts and negative pressure systems

2. Socket Welding

• Ideal for smaller Square PP Duct systems (<500mm) in positive pressure applications
• Male/female socket design with continuous circumferential weld

3. Butt Fusion Connection

• Creates fully monolithic joint with molecular-level fusion
• Zero leakage potential for permanent straight duct runs
• Not recommended for systems requiring future disassembly
